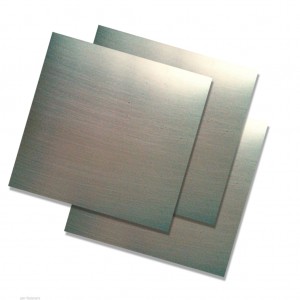

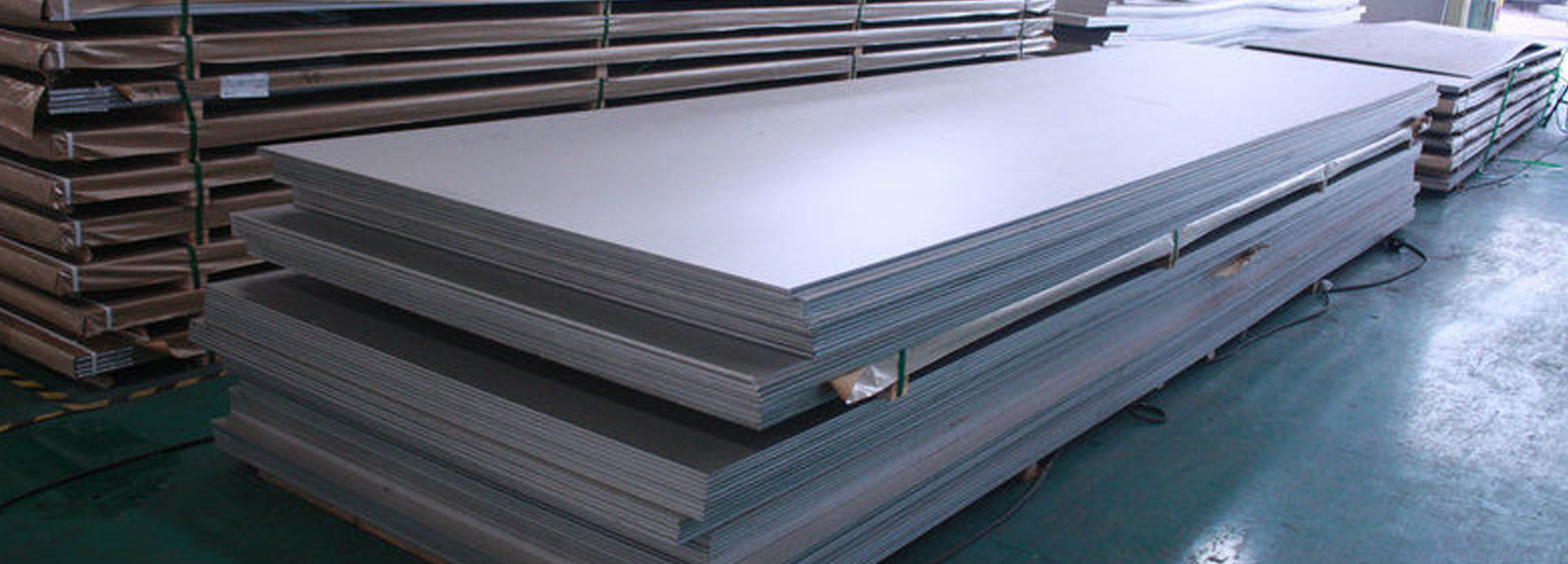

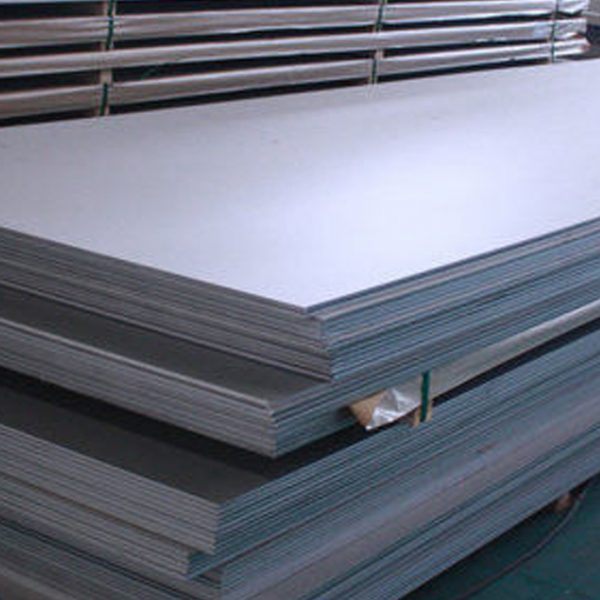

Sheets/Plates/Coils/Strips

admin

Product Range:

Nickel Silver

Beryllium Copper

Alluminium Bronze

Cupro Nickel

Category:

Description

Mechanical Properties for Sheets/Plates/Coils/Strips
PRODUCT ANN (0) Q.H(HA) H.H(HB) HARD(HD) EX.HARD(HE) S.H(HS)
N.SILVER18T 115 MAX 140/170 170/190 195/220 220 MIN 240 MIN
N.SILVER20 110 MAX 110/140 140 MIN 175 MIN 205 MIN –
N.SILVER18 110 MAX 110/135 135 MIN 170 MIN 200 MIN –
N.SILVER15 105 MAX 105/135 135 MIN 165 MIN 195 MIN –
N.SILVER12 100 MAX 100/130 130 MIN 160 MIN 190 MIN –
N.SILVER10 100 MAX 100/125 125 MIN 160 MIN 185 MIN –



Chemical Properties for Sheets/Plates/Coils/Strips
ALLOY COPPER ZNIC NIKLE TIN PHOS LEAD MG IRON IMP.
N.SILVER10 60-65 REM 09-11 – – 0.04 MAX 0.5 MAX 0.30 MAX 0.50 MAX
N.SILVER12 60-65 REM 11-13 – – 0.04 MAX 0.5 MAX 0.30 MAX 0.50 MAX
N.SILVER15 60-65 REM 14-16 – – 0.04 MAX 0.5 MAX 0.30 MAX 0.50 MAX
N.SILVER18 60-65 REM 16.5-19.5 – – 0.04 MAX 0.5 MAX 0.30 MAX 0.50 MAX
N.SILVER20 53.5-56.5 REM 16.5-19.5 – – 0.04 MAX 0.5 MAX 0.30 MAX 0.1 MAX
N.SILVER18T 60-65 REM 18.5-21.5 – – 0.04 MAX 0.5 MAX 0.30 MAX 0.50 MAX
