Rods/Profiles/Sections

admin

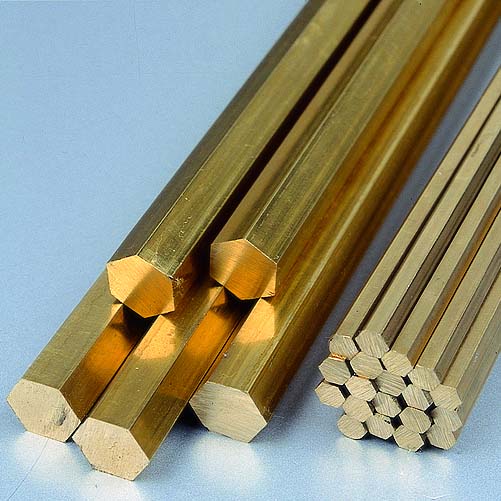

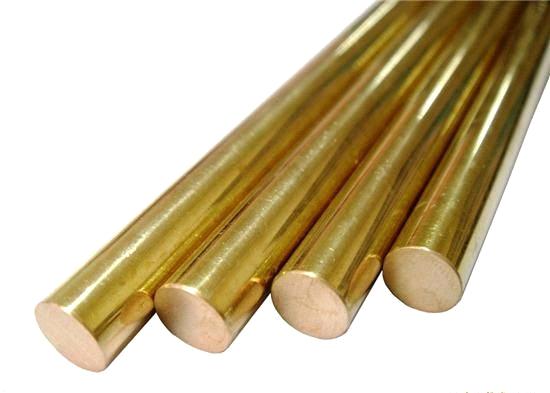

A. EXTRUDED & DRAWN BRASS RODS
10 MM to 80 MM In shape of round, Hex, square
(After 50 mm it is only extruded)

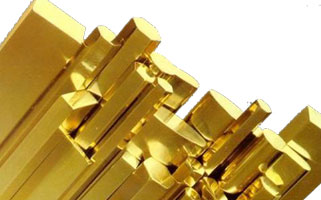

B. BRASS FLAT BARS
We are THICKNESS – From 1/8″ Width – up to 3″
(Drawing operation will be carried out if required)
C. PROFILE & SECTIONS
We are providing the profile & Section utilizing to various industries manufacturing Hardware / Electric & Electronic Components / Pressure Gauge etc. We can supply you as per your drawing.
Available in required sizes

Manufactured according to ISS, BSS, DIN standard and are also made as per customer’s specifications.
Category:

Description

Chemical Properties for Rods/Profiles/Sections
ALLOYS Cu % Zn % Ni % Sn % P % Si % Mn % AS % PB % FE % AL % OTHERS %
BRASS – TYPE1 56-59 REM – – – – – – 2-3.5 0.35 MAX – 0.7 MAX
BRASS – TYPE2 60-63 REM – – – – – – 2.5-3.7 0.35 MAX – 0.25 MAX
FORGING BRASS 56.5-60 REM – – – – – – 0.6-2.0 0.3 MAX – 0.5 MAX
HIGH TENSILE BR ALLOY1 56-59 REM – 0.75-1.75 – – 2.0 MAX – 0.5 MAX 1.25 MAX 0.2 MAX 0.5 MAX
HIGH TENSILE BR ALLOY2 56-59 REM – 0.5 MAX – – 0.5-1.2 – 1.0 MAX 0.7-1.2 0.2-1.2 0.5 MAX
HIGH TENSILE BR ALLOY3 57-61 REM – 1.0 MAX – – 0.25-1.0 – 0.75-1.0 0.25-1 0.5-2.0 0.4 MAX
HIGH TENSILE BR (CZ114) 56-59 REM – 0.1-0.2 – – 0.3-0.2 – 0.2-1.5 0.25-1.2 1.5 MAX 0.15 MAX
HIGH TENSILE BR (CZ115) 56-60 REM – 0.6-0.11 – – 0.3-0.2 – 0.5-1.5 0.5-1.2 0.2 MAX 0.15 MAX
NAVAL BR GRADE – 1 61-64 REM – 1.0-1.5 – – – – 0.2 MAX 0.1 MAX – 0.2 MAX
NAVAL BR GRADE – 2 59-62 REM – 1.0-1.5 – – – – 0.5-1.0 0.1 MAX – 0.2 MAX
RIVETING BR (LEAD FREE) 59-62 REM – – – – – – 0.1 MAX – – 0.3 MAX
RIVETING BR (LEADED) 61-64 REM – – – – – – 1.0-2.5 – – 0.3 MAX
SILICON BRASS 66-70 REM – 0.75-1.25 – – – – 0.3-0.8 – – 0.8 MAX
CUZN40 AL2 55.5-59 REM 2 0.5 – 0.8 1-2.4 – 0.8 1 1.3-2.3 0.5 MAX
