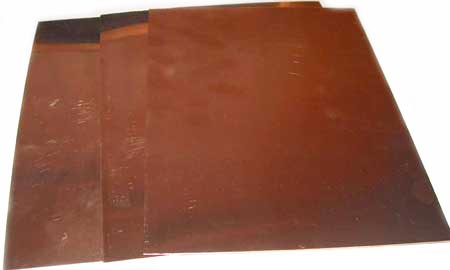

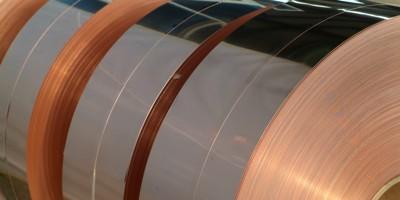

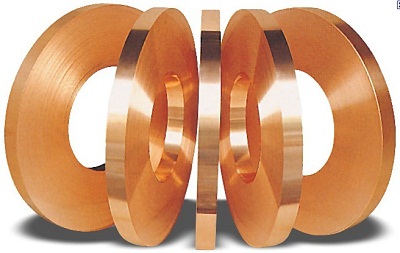

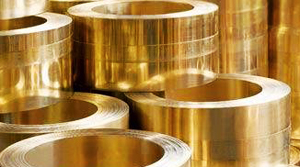

Plates/Sheets/Coils

admin

Product Range:

Thickness : 4 mm To 0.1 mm

Width : As per customer requirement.

We can provide pre-plated material also (Tin/Nickel).

Category:

Description

Mechanical Properties for Plates/sheets/Coils
PRODUCT ANN (0) Q.H(HA) H.H(HB) HARD(HD) EX.HARD(HE) S.H(HS)
P.B1 80 MAX 100/150 150 MIN 180 MIN 190 MIN 190 MIN
P.B2 85 MAX 115/170 160 MIN 180 MIN 200 MIN 200 MIN
P.B3 90 MAX 115/170 170 MIN 200 MIN 215 MIN 215 MIN



Chemical Properties for Plates/Sheets/Coils
ALLOY COPPER ZNIC NIKLE TIN PHOS LEAD MG IRON IMP.
P.B1 REM – – 3.0-4.5% 0.02-0.04 0.02 MAX – – 0.2 MAX
P.B2 REM – – 4.6-5.5% 0.02-0.04 0.02 MAX – – 0.2 MAX
P.B3 REM – – 5.6-7.5% 0.02-0.04 0.02 MAX – – 0.2 MAX
