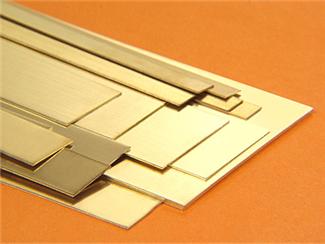

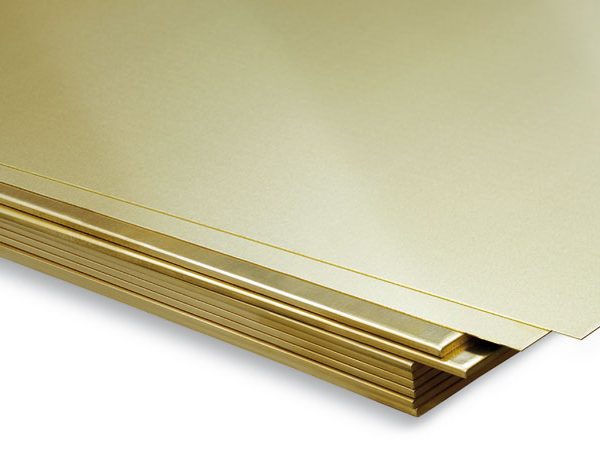

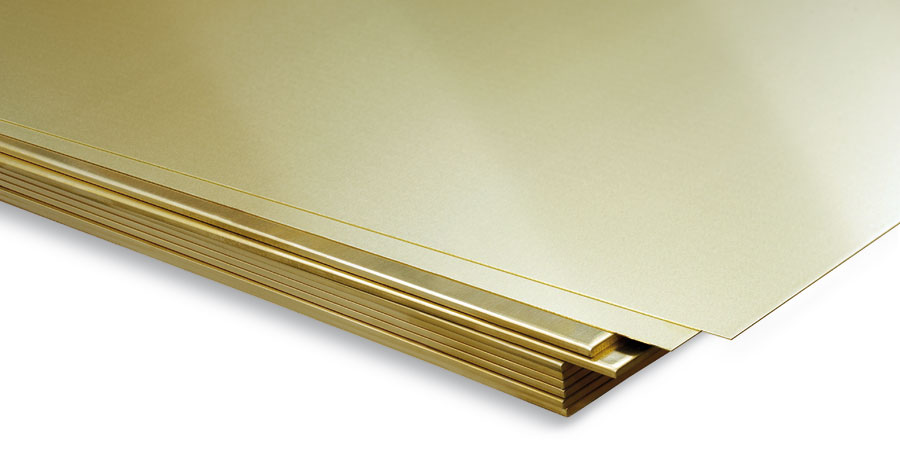

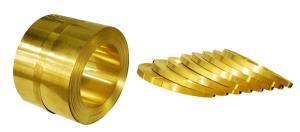

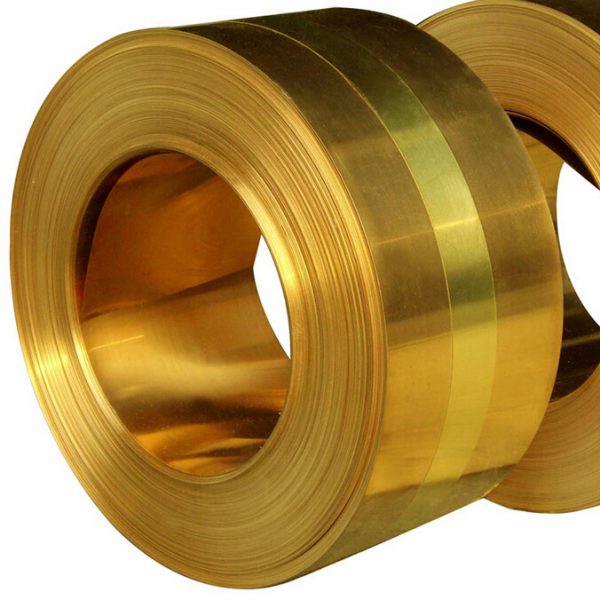

Coil/Sheets/Strips/Plates

admin

Product Range:

Coil width : 1000 mm(max.) To 10 mm (min.)

Thickness : 6 mm To 0.05 mm

Brass Plates/Sheet : 1000 mm(W) x 2000 mm(L)

Thickness : 25 mm To 0.7 mm

We can provide pre plated material also (TIN/NICKEL)

Category:

Description



Mechanical Properties for Coil/Sheets/Strips & Plates
PRODUCT ANN (0) Q.H(HA) H.H(HB) HARD(HD) EX.HARD(HE) S.H(HS)
Brass 60/40 85 MAX 86/100 100/125 126 MIN – –
Brass 63/37 80 MAX 75/110 110-125 135/165 165/185 185 MIN
Brass 70/30 80 MAX 75/110 110-125 135/165 165/185 185 MIN
Brass 85/15 75 MAX – 90 MIN 110 MIN – –
Brass 90/10 75 MAX – 90 MIN 110 MIN – –
Brass 95/5 75 MAX – 90 MIN 110 MIN – –



Chemical Properties for Coil/Sheets/Strips & Plates
ALLOY COPPER ZNIC NIKLE TIN PHOS LEAD MG IRON IMP.
Brass 60/40 58.5-61.5 REM – – – – – – 0.40 MAX
Brass 63/37 61.5-64.5 REM – – – – – – 0.375 MAX
Brass 70/30 68.5-71.5 REM – – – – – – 0.2 MAX
Brass 85/15 83.5-86.5 REM – – – – – – 0.2 MAX
Brass 90/10 88.5-91.5 REM – – – – – – 0.2 MAX
Brass 95/5 93.5-96.5 REM – – – – – – 0.2 MAX
