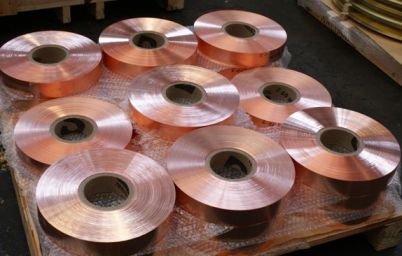

Coil/Sheets/Strips/Plates

admin

Product Range:

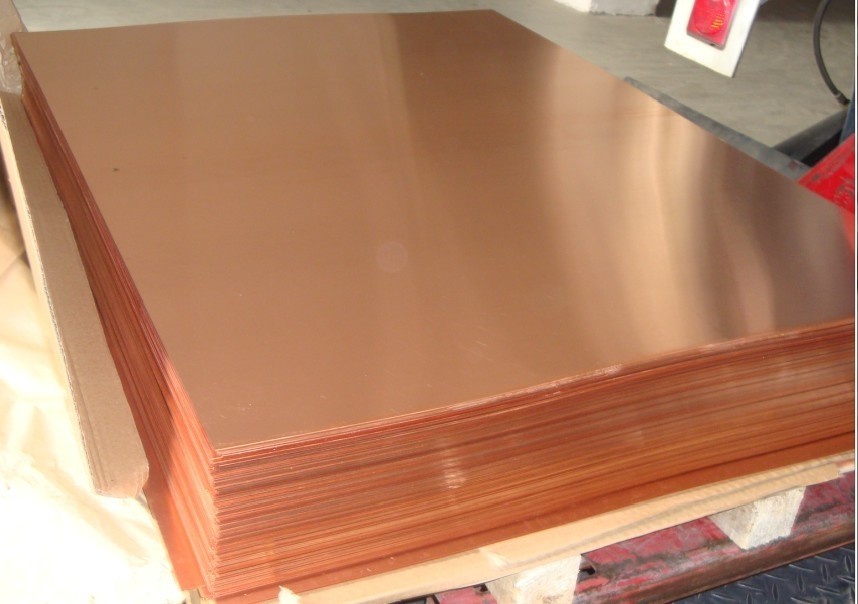

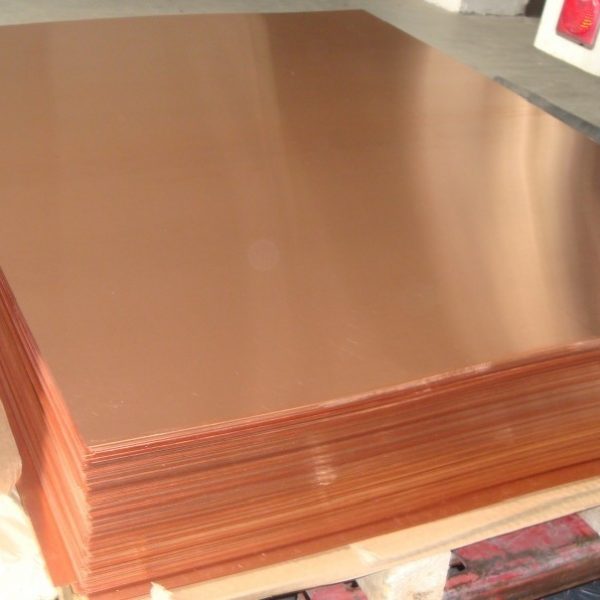

Copper/Plates/Sheet : 1000 mm (W) x 2000 mm (L)

Thickness : 25 mm To 0.3 mm

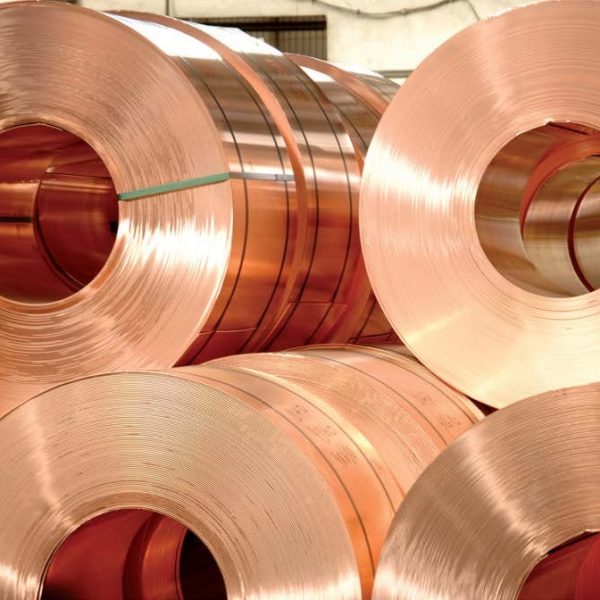

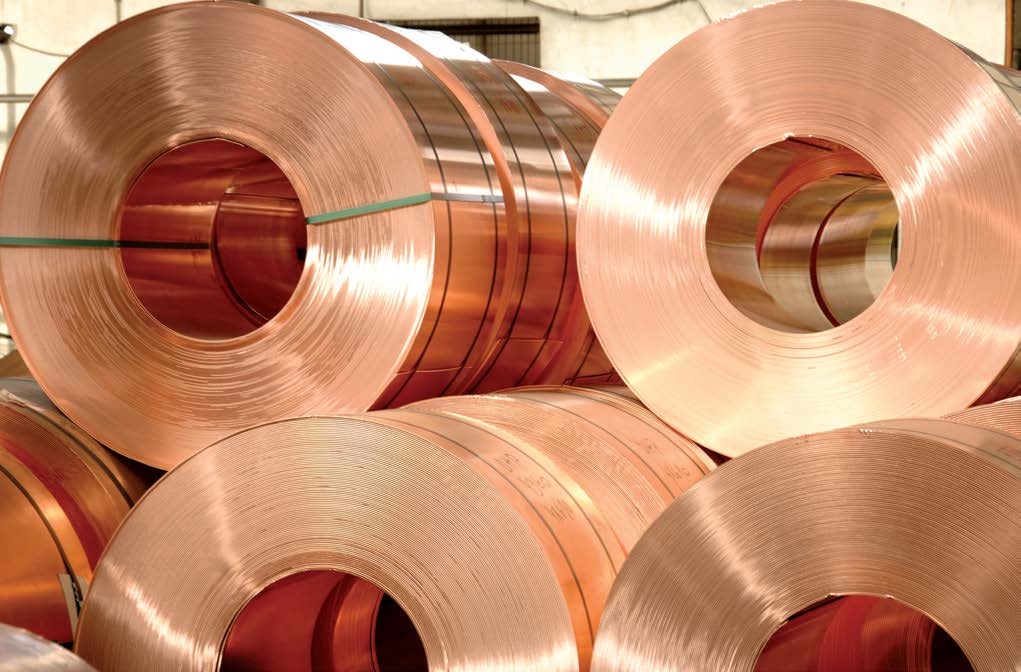

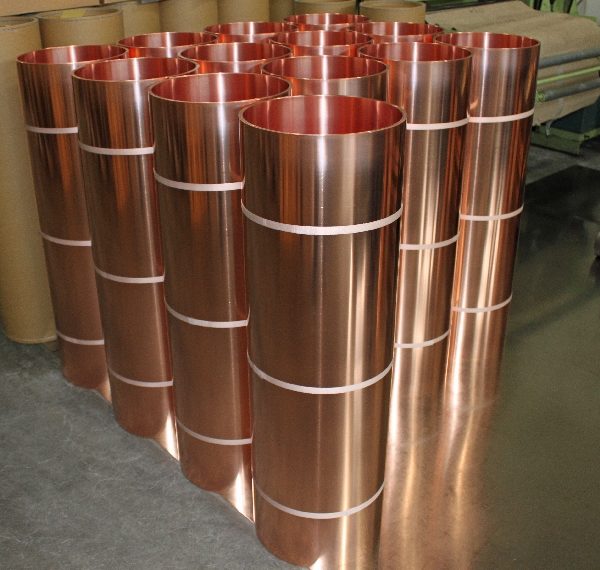

Coils width : 1000 mm (max.)

Thickness : 6 mm To 0.05 mm

Coils can be provided with the radius(round edge)

Thickness : 6 mm To 0.2 mm

We can provide pre-plated material also(Tin/Nickel).

We supply oxygen free copper also.

Category:

Description

Mechanical Properties for Plates/sheets/strips&coils
PRODUCT ANN (0) Q.H(HA) H.H(HB) HARD(HD) EX.HARD(HE) S.H(HS)
Copper E.T.P 65 MAX 65/74 75/90 90 MIN – –
Copper D.H.P 60 MAX 60/80 75/90 90 MIN – –
Copper T.C.B 60 MAX 60/80 75/90 90 MIN – –
Copper D.L.P 60 MAX 60/80 75/90 90 MIN – –
Copper F.R.H.C 65 MAX 65/74 75/90 90 MIN – –
Copper ZN 0,5 60 MAX 60/80 75/90 90 MIN – –



Chemical Properties for Plates/sheets/strips & coils
ALLOY COPPER ZNIC NIKLE TIN PHOS LEAD MG IRON IMP.
Copper E.T.P 99.9 – – – – – – – –
Copper D.H.P 99.85 – – 0.015-0.04 – – – 0.06 MAX
Copper T.C.B 99.7 – – 0.03-0.12 0.05 MAX – – – 0.06 MAX
Copper D.L.P 99.9 – – – 0.004-0.012 – – – –
Copper F.R.H.C 99.9 – – – – – – – –
Copper ZN 0,5 BALANCE 0.1-1.0 – – 0.2 MAX – – – –
